Spotxel® Reader: Plate Reader & Microarray Image Analysis

Spotxel Reader® turns smartphones into a handy and quality microplate reader. The free app enables reading and analysis of multiple samples in parallel in plate formats:

  • Capturing: Take picture of the microplate.
  • Reading: Detect and measure color signal in the microplate wells.
  • Analysis: Annotate the microplate, specify the assay’s standards concentration, and derive the unknowns’ concentration.

The latest version of the app works on Windows platforms, which enables to analyze the microplate images on Windows computers and, capture the microplate via a USB- or network-connected camera.

On smartphones, the app supports image analysis of assays with samples in row, column, or microarray formats.

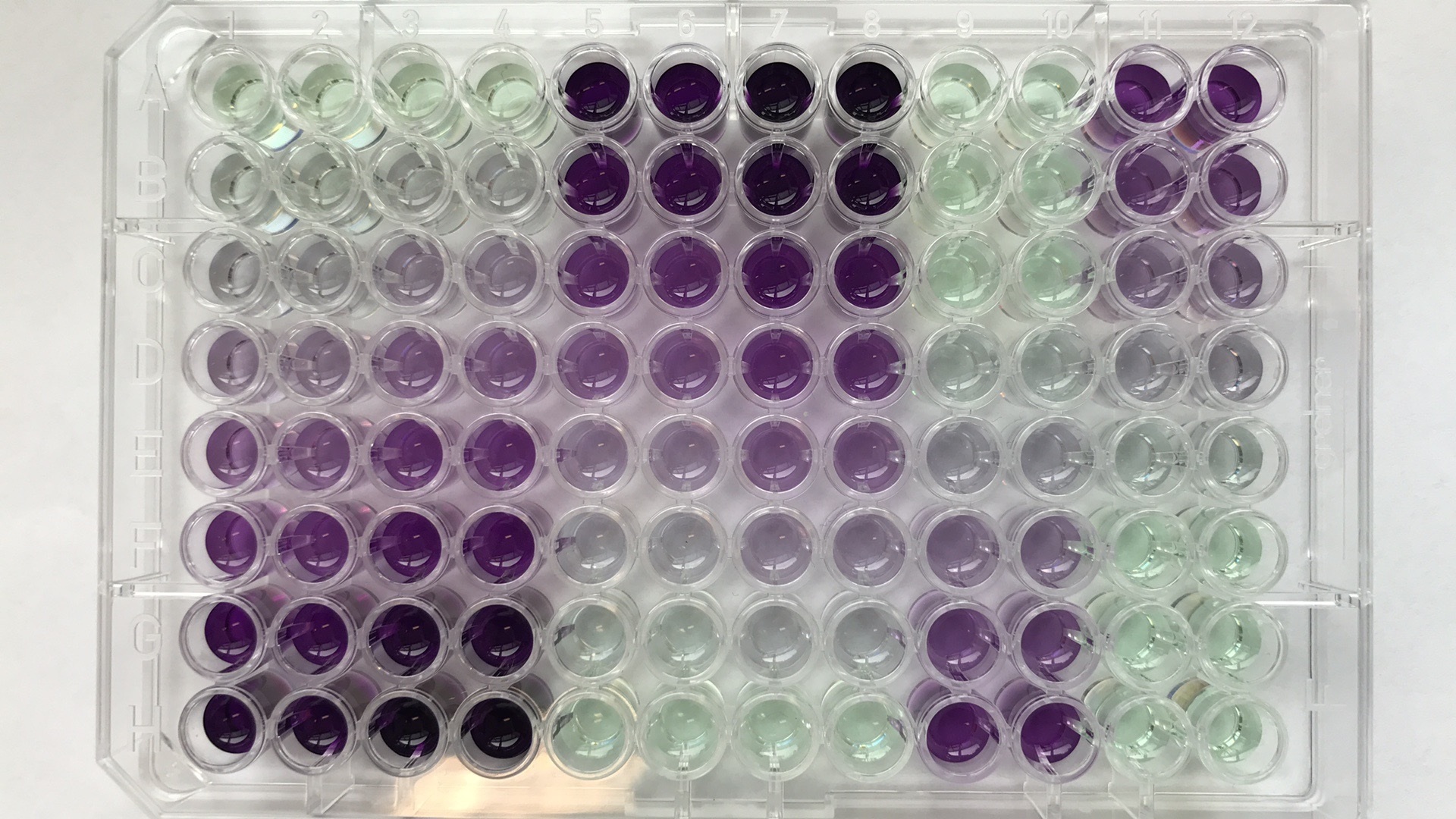

To start with, install the app from the app store with the following links, and explore its functionality with this sample image and its setting in Figure 7 if you do not have one.

Camera calibration and image capture

The Camera page (Figure 1) provides a virtual plate which highlights the wells at the plate’s center and corner. You can adjust the size and the distortion factor of this virtual plate to tune for the best position and angle of the camera to the real plate.

The calibration parameters are saved upon the image capturing, thus it might need to be calibrated only once. This is particularly useful if a fixed holder (Figure 1) is employed. In addition, careful calibration aligns the captured image with the real plate, enabling image analysis without further alignment.

Figure 1: Camera calibration and image capture.

Image analysis

The Image Analysis page (Figure 2) supports detection and quantification of the wells’ color signal. You can choose to analyze an image captured by the app or an available image on your phone (for iOS devices: from the Photo Library).

Figure 2: Microplate image and the virtual plate.

Challenges to be addressed

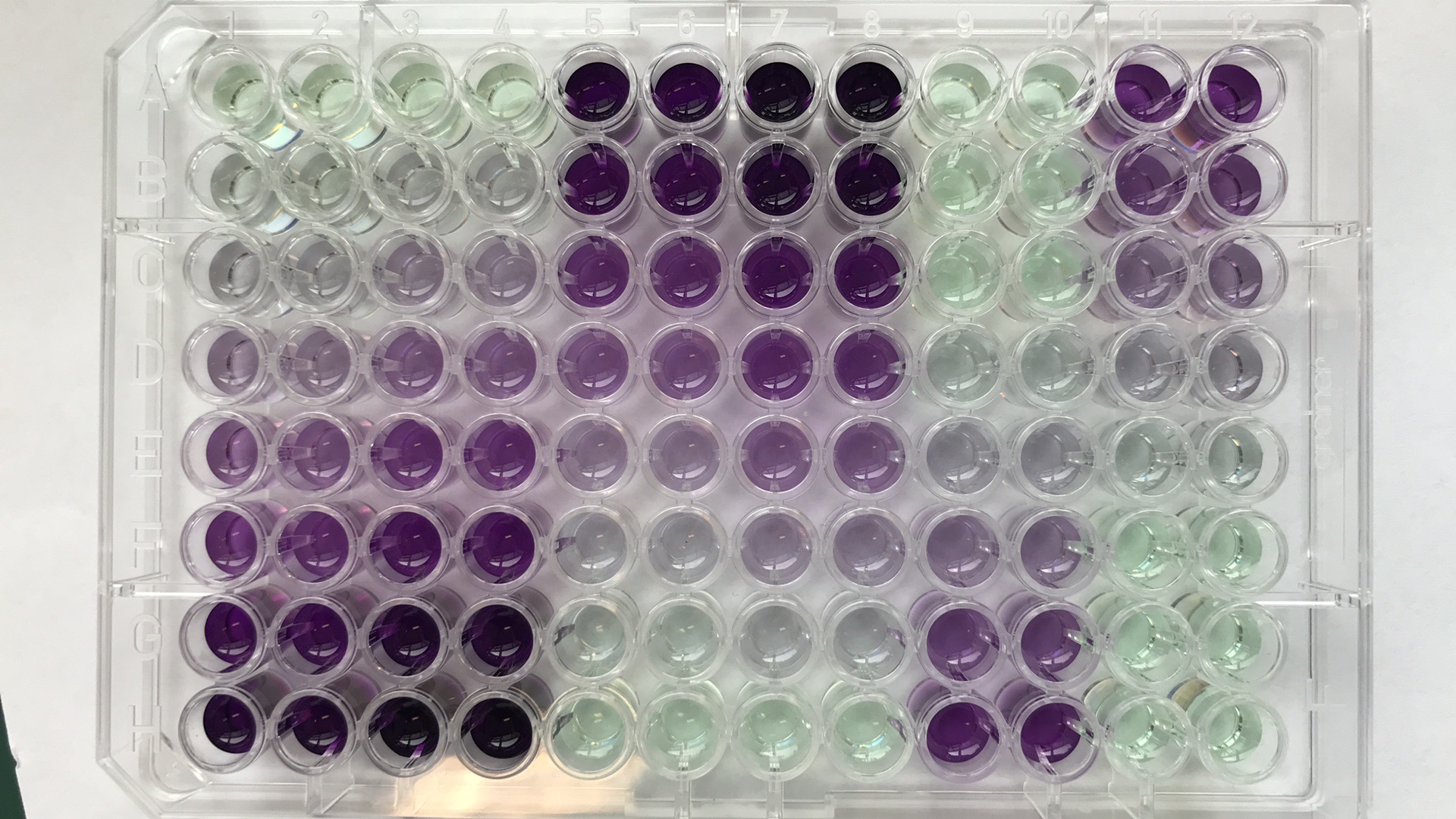

Consider the microplate image in Figure 3. Unexpected artifacts should be detected and processed. These include:

(1) Camera lens’ distortion effect and different view angles to the wells: The camera focuses at the plate’s center. Observe that the well signal at the plate center such as D6 or E7 is round, while those at the border such as A12 or G1 are elliptic.

(2) “Smearing” signal from neighbor wells: Consider well F3; the signal at its left side is due to well F2, while that at its bottom side is due to well G3.

Figure 3: Microplate image.

Signal Detection and Quantification

You can start processing the image after aligning the virtual microplate with the image. The detection and quantification of the wells’ signal takes a few seconds to some minutes, depending on the smartphone processor and the image resolution. The grid is then hidden for viewing convenience. The detected signal in each well is marked with a red boundary (Figure 4).

Figure 4: Detected signal with boundary highlighted in red.

Signal Detection Results

Observe the detected signal in Figure 4 and a close-up of the plate bottom-left corner in Figure 5. The signal detection procedure, whose result is illustrated by red boundary, is able to:

  • Identify the significant region of the wells’ signal, regardless of their shape and color intensity.
  • Exclude the “smearing” signal of the neighbor wells.
Figure 5: Close-up of the plate’s bottom-left region.

Signal Quantification Results

The color intensity values are graphically reported in the virtual microplate in the Assay page (Figure 6), as well as in the classical table format in the Quantified Data page (Figure 10).

Figure 6: Measured color intensity.

Assay setup and colorimetric data analysis

By means of a virtual plate in the Assay page (Figure 6), we can define the wells’ name and notes and set the standards’ concentration. After signal quantification, this page depicts the wells in the color similar to that of the wells’ sample. Annotation is easy; simply select a well and type in the name or using the slider to set the concentration value.

Figure 7: Setting standards’ concentration.

Having the wells’ color intensity and the standards’ concentration available, we can start the analysis to find the unknowns’ concentration value. The Standard Curve page (Figure 8) depicts a chart with the standard curve as the green curve and the standards’ coordinate as blue dots.

Figure 8: Standard curve.

The unknowns’ concentration values are derived from the standard curve. They are reported directly in the Assay page (Figure 9), as well as in the table in the Quantified Data page (Figure 10).

Figure 9: Assay analysis results.

Table of Quantified Data

The Quantified Data page presents a table containing both the annotation and the quantified data of the microplate. These include the wells’ address, name, notes, and their color intensity and concentration value if available. The table data can be exported to a CSV file for report o further analysis.

Figure 10: Table of quantified data with derived concentrations.


The analysis results exhibit very good correlation (Figure 11) with those of a popular plate reader.

Figure 11: Spotxel® Reader quality.

Product Updates

01 Nov 2021 - Spotxel® Reader for Windows computers is available on the Microsoft Store.

14 Jan 2021 – Spotxel® Reader supports in-app help and loading assay setups from a CSV file.

04 May 2020 - Spotxel® supports TIFF taken by cameras, HuProt GAL formats, detachable spot viewer...
